Atto Super Air Nozzle
Smallest engineered nozzle - ultimate precision
EXAIR's Atto Super Air Nozzle delivers the smallest, most precise blowoff available. The air pattern for this tiny nozzle is highly focused, measuring just 1.0" in diameter when positioned 6" away from the surface. At only 58 dBA, the noise level is a fraction of ordinary air nozzles - perfect for quiet work environments. Using the Coanda effect, it amplifies airflow up to 25 times compressed air consumption while meeting all OSHA safety requirements. The PEEK material option is chosen for non-marring quality on sensitive lenses and optics.

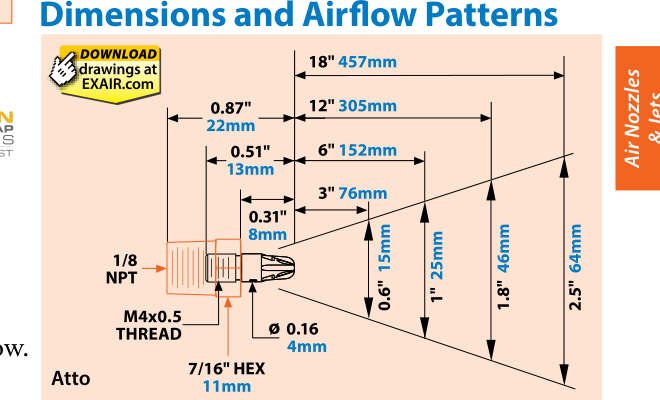

Dimensions & Airflow Pattern
All measurements at 80 PSIG (5.5 BAR). Force measured at 12" (305mm) from target.
Applications
- Micro-electronics assembly
- Sensitive lens and optics blowoff
- Watch and jewelry manufacturing
- Medical device assembly
- Laboratory and research equipment
- Semiconductor handling
- Miniature part ejection
- Part cleaning
- Chip removal
- Part drying
- Liquid blowoff
- Part cooling
- Material conveying
- Fiber conveying
- Air assist
Key Benefits
- Smallest engineered air nozzle available
- Ultra-low 2.5 SCFM air consumption
- Whisper-quiet 58 dBA operation
- Highly focused 1" air pattern at 6"
- Non-marring PEEK option for sensitive surfaces
- Up to 80% air savings vs open tubes
- Meets OSHA pressure and noise requirements
- Type 316 Stainless Steel for corrosion resistance
- Coanda effect amplifies airflow up to 25x
- Cannot be dead-ended - safe by design
- CE marked for international compliance
- No moving parts - maintenance free
- Flexible Stay Set Hoses available for repositioning
Available Materials
Stainless Steel (Type 316)
For washdown, food/beverage, pharmaceutical, and corrosive environments.
PEEK (Plastic)
High-temp thermoplastic for extreme environments. Non-marring, chemically inert.
Base Models & Pricing
| Model | Description | Material | Inlet | Price USD |
|---|---|---|---|---|
| 1108SS | Atto Super Air Nozzle | Stainless Steel Type 316 | M4 x 0.5 | $109.41 |
| 1108-PEEK | PEEK Atto Super Air Nozzle | PEEK (Plastic) | M4 x 0.5 | $81.18 |
| 1108SS-NPT | Atto Super Air Nozzle with Adapter | Stainless Steel Type 316 | 1/8 MNPT | $139.41 |
| 1108-PEEK-NPT | PEEK Atto Super Air Nozzle with Adapter | PEEK (Plastic) | 1/8 MNPT | $111.18 |
Kits & Accessories
Pre-configured combinations with Stay Set Hoses and Magnetic Bases for easy positioning and repositioning.
| Model | Configuration | Price USD |
|---|---|---|
| 1108SS-NPT-9256 | Atto SS + 6" Stay Set Hose | $241.59 |
| 1108SS-NPT-9262 | Atto SS + 12" Stay Set Hose | $245.47 |
| 1108SS-NPT-9268 | Atto SS + 18" Stay Set Hose | $258.88 |
| 1108SS-NPT-9274 | Atto SS + 24" Stay Set Hose | $270.53 |
| 1108SS-NPT-9280 | Atto SS + 30" Stay Set Hose | $289.76 |
| 1108SS-NPT-9286 | Atto SS + 36" Stay Set Hose | $307.24 |
| 1108SS-NPT-9356 | Atto SS + 6" Stay Set Hose + Mag Base | $455.12 |
| 1108SS-NPT-9362 | Atto SS + 12" Stay Set Hose + Mag Base | $459.00 |
+ 8 more configurations available. Contact us for full pricing.
Air Savings Comparison
Open Pipe / Tube
Atto Super Air Nozzle
96% air reduction
Atto Super Air Nozzle Products
Atto Super Air Nozzle with Adapter for 1/8NPTM with 6" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 12" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 18" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 24" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 30" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 36" Stay Set Hose (MF)
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 6" Stay Set Hose (MF) with One Outlet Mag Base
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 12" Stay Set Hose (MF) with One Outlet Mag Base
Request PriceAtto Super Air Nozzle with Adapter for 1/8NPTM with 18" Stay Set Hose (MF) with One Outlet Mag Base
Request PriceGet Pricing for Atto Super Air Nozzle
Our application engineers can help you select the right model and configuration for your specific requirements.
